AEM 340 LPH HIGH FLOW IN-TANK FUEL PUMP (UNIVERSAL)

Features:

• Designed for high output naturally aspirated and forced induction EFI vehicles
• In-tank design
• Tested to flow 340 lph @ 40 PSI
• 39mm diameter fits most applications
• Offset inlet design eases installation
• Each pump individually tested
• For gasoline vehicles

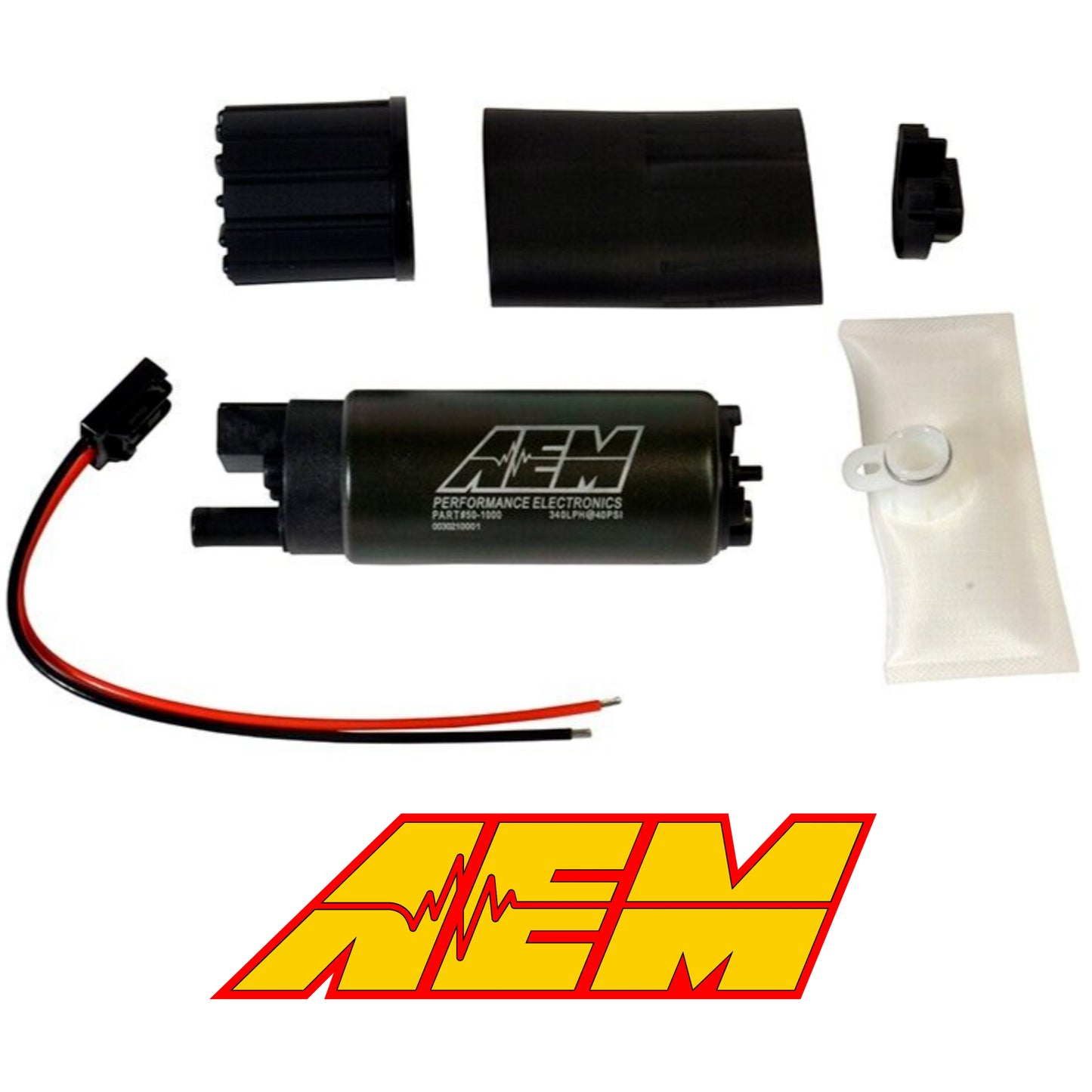

• Kit includes fuel pump, rubber sleeve and end caps, pre filter and flying lead

TECHNICAL SPECS:

Weight: 12.5oz (354grams) Outside Diameter: 39mm OD External Materials: Black plated steel with laser etching Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline Outlet Fitting: 8 mm hose clamp. Offset PRV Activation: 80 PSI Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:

• Connector Terminal: 6 mm Spade (pos/neg)
• Min Voltage Input: 6 volts
• Max Voltage Input: 18 volts
• Current Draw (40 psi): 12 amps (13.5v)
• Current Draw (80 psi): 15 amps (13.5v)
• Fuse: 20 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
